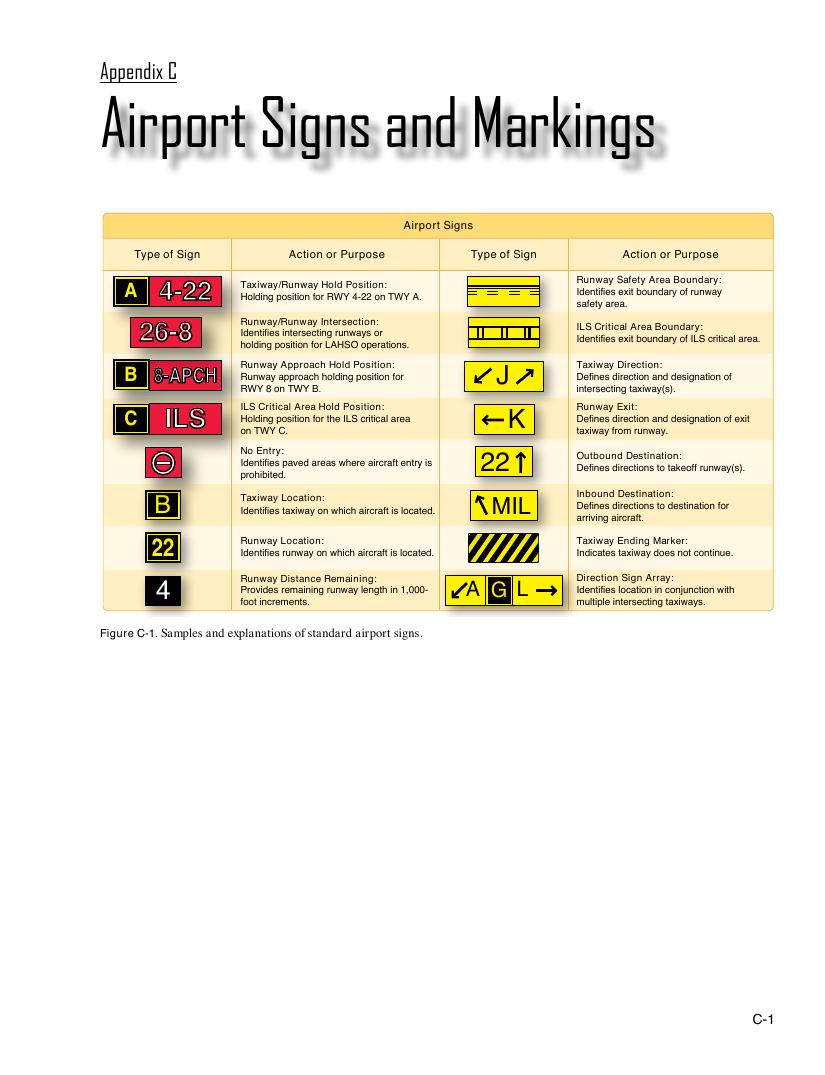

Appendix C Airport Signs and Markings Airport Signs Type of Sign Action or Purpose Type of Sign Action or Purpose Runway Safety Area Boundary: A 4-22 Taxiway/Runway Hold Position: Identifies exit boundary of runway Holding position for RWY 4-22 on TWY A. safety area. Runway/Runway Intersection: 26-8 ILS Critical Area Boundary: Identifies intersecting runways or Identifies exit boundary of ILS critical area. holding position for LAHSO operations. Runway Approach Hold Position: Taxiway Direction: B 8-APCH J Runway approach holding position for Defines direction and designation of RWY 8 on TWY B. intersecting taxiway(s). ILS Critical Area Hold Position: Runway Exit: C ILS Holding position for the ILS critical area K Defines direction and designation of exit on TWY C. taxiway from runway. No Entry: 22 Outbound Destination: Identifies paved areas where aircraft entry is Defines directions to takeoff runway(s). prohibited. B Taxiway Location: MIL I D n e b f o in u e n s d d D ire e c s t t io in n a s t i t o o n d : estination for Identifies taxiway on which aircraft is located. arriving aircraft. 22 Runway Location: Taxiway Ending Marker: Identifies runway on which aircraft is located. Indicates taxiway does not continue. Runway Distance Remaining: Direction Sign Array: 4 Provides remaining runway length in 1,000- A G L Identifies location in conjunction with foot increments. multiple intersecting taxiways. Figure C-1. Samples and explanations of standard airport signs. C-1
