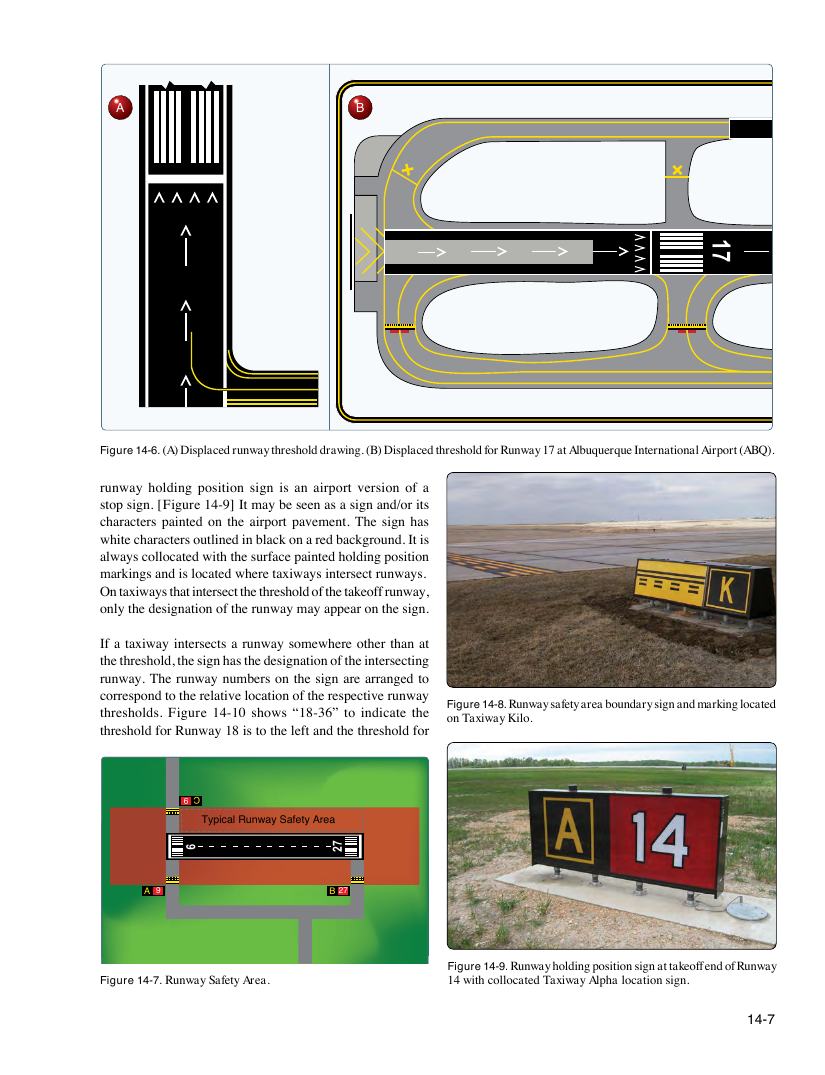

A 14-7 17 B × × Figure 14-6. (A) Displaced runway threshold drawing. (B) Displaced threshold for Runway 17 at Albuquerque International Airport (ABQ). 9 72 runway holding position sign is an airport version of a stop sign. [Figure 14-9] It may be seen as a sign and/or its characters painted on the airport pavement. The sign has white characters outlined in black on a red background. It is always collocated with the surface painted holding position markings and is located where taxiways intersect runways. On taxiways that intersect the threshold of the takeoff runway, only the designation of the runway may appear on the sign. If a taxiway intersects a runway somewhere other than at the threshold, the sign has the designation of the intersecting runway. The runway numbers on the sign are arranged to correspond to the relative location of the respective runway Figure 14-8. Runway safety area boundary sign and marking located thresholds. Figure 14-10 shows “18-36” to indicate the on Taxiway Kilo. threshold for Runway 18 is to the left and the threshold for 9 C Typical Runway Safety Area A 9 B27 Figure 14-9. Runway holding position sign at takeoff end of Runway Figure 14-7. Runway Safety Area. 14 with collocated Taxiway Alpha location sign.
