Flight Manuals and Other Documents

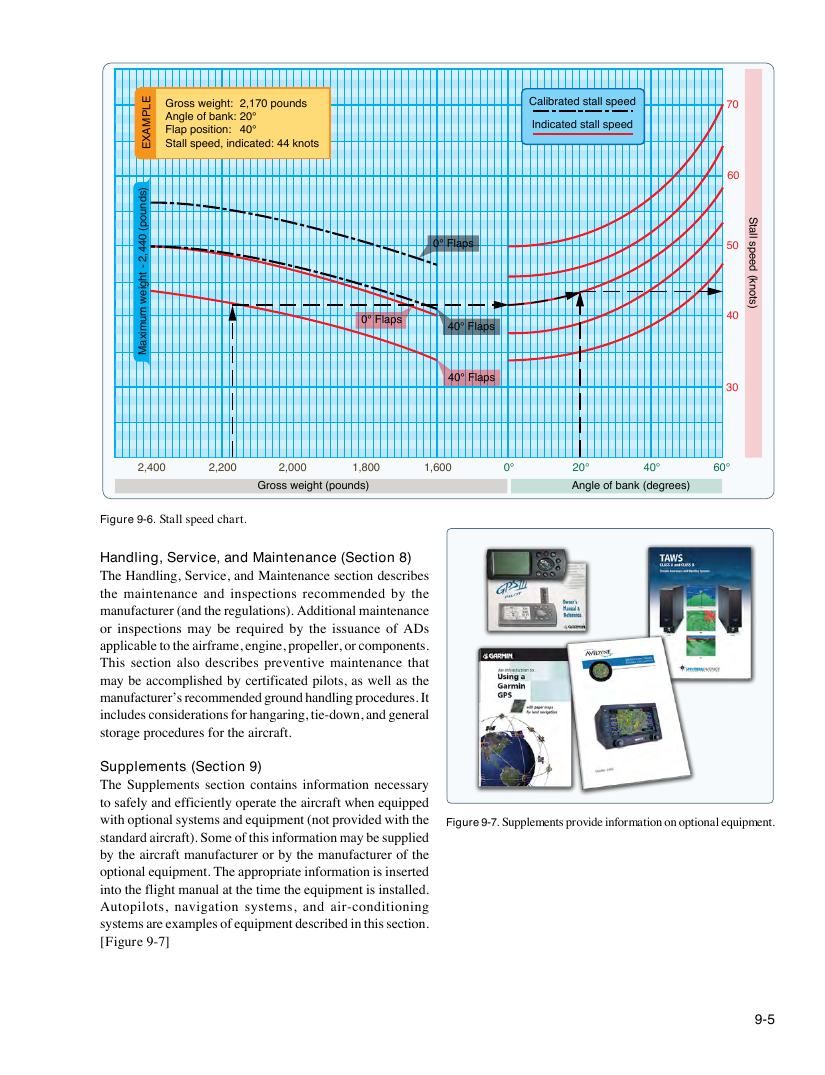

70 60 50 40 30 2,400 2,200 2,000 1,800 1,600 0° 20° 40° 60° 9-5 Stall speed (knots) 0° Flaps 0° Flaps 40° Flaps Gross weight (pounds) Angle of bank (degrees) )sdnuop( 044,2 - thgiew mumixaM Calibrated stall speed Indicated stall speed ELPMAXE Gross weight: 2,170 pounds Angle of bank: 20° Flap position: 40° Stall speed, indicated: 44 knots 40° Flaps Figure 9-6. Stall speed chart. Handling, Service, and Maintenance (Section 8) The Handling, Service, and Maintenance section describes the maintenance and inspections recommended by the manufacturer (and the regulations). Additional maintenance or inspections may be required by the issuance of ADs applicable to the airframe, engine, propeller, or components. This section also describes preventive maintenance that may be accomplished by certificated pilots, as well as the manufacturer’s recommended ground handling procedures. It includes considerations for hangaring, tie-down, and general storage procedures for the aircraft. Supplements (Section 9) The Supplements section contains information necessary to safely and efficiently operate the aircraft when equipped with optional systems and equipment (not provided with the Figure 9-7. Supplements provide information on optional equipment. standard aircraft). Some of this information may be supplied by the aircraft manufacturer or by the manufacturer of the optional equipment. The appropriate information is inserted into the flight manual at the time the equipment is installed. Autopilots, navigation systems, and air-conditioning systems are examples of equipment described in this section. [Figure 9-7]
