Aviation Weather Services

NORTH UP · PHAK page 13-20

Original FAA PHAK page 13-20
Faithful view of source page 13-20. Select it to enlarge.

Searchable transcription

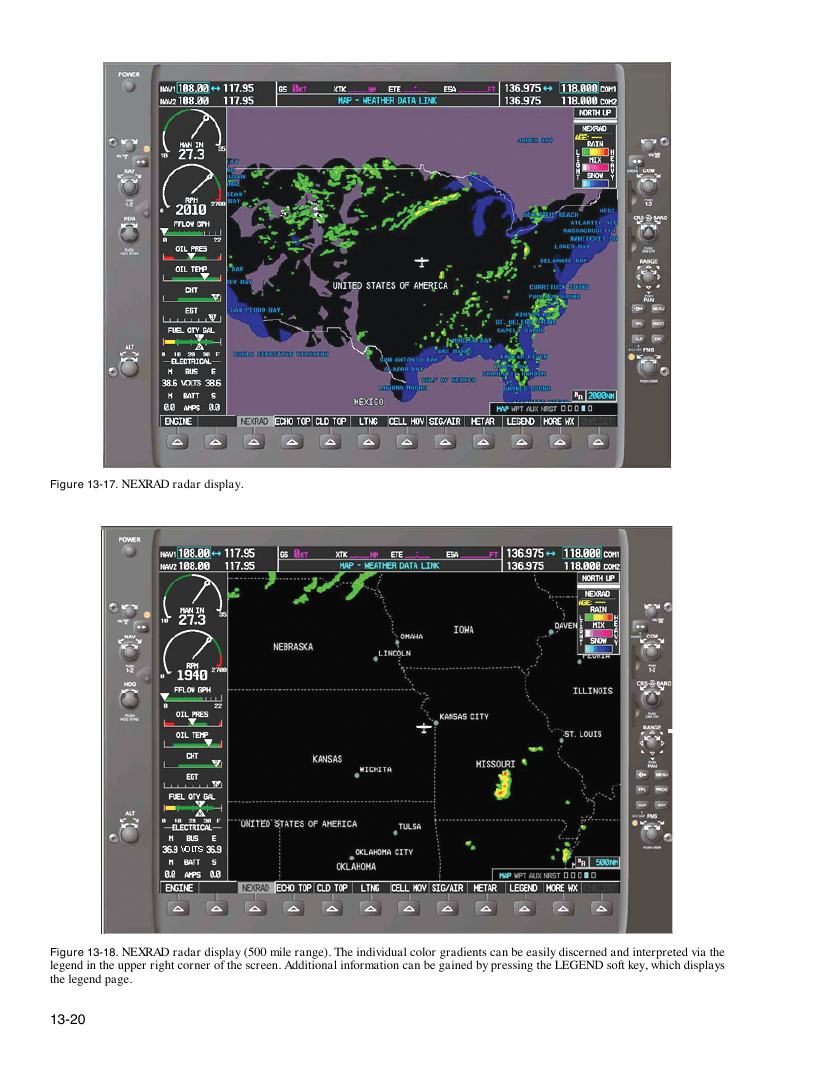

Figure 13-17. NEXRAD radar display. Figure 13-18. NEXRAD radar display (500 mile range). The individual color gradients can be easily discerned and interpreted via the legend in the upper right corner of the screen. Additional information can be gained by pressing the LEGEND soft key, which displays the legend page. 13-20
